2km dag/1km nattevagt 24-timers overvågning
1080P HD netkamera, 0.005lux farve til B/W 123456788890 8§320mm linse, motoriseret zoom, auto focus
10W, 888nm NIR militær laserlysator 12567890 360 kontinuerlig panvinklen:-75 176;§ 40 176;
Pan: 0.1 176;/ s/s 176;/ s,vipp: 0.1176;/ s-30 176;/ s rotationshastighed
Understøtter absolut kontrol, koordinat, display, forudindstilling, krydsning og scanning
-Die aluminiumstøbt indeslutning, IP66 beskyttelse

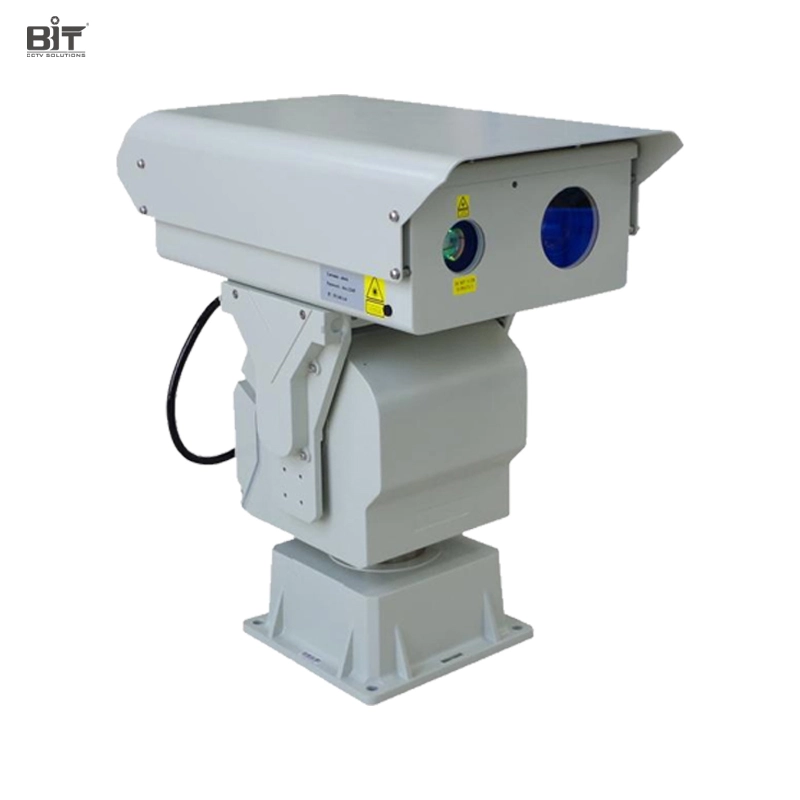

BIT-RC2132W, et 2km langdistance night vision laserkamera PTZ er designet til 24-timers overvågning af alle vejrforhold.Med super homogeniserende NIR-laser og lav belysning 2mp 1080P HD-kamera kan dets maksimale detektionsafstand for objekt være op til 2 km om dagen og 1 km om natten.
Det har indbygget indbygget indbygget elektronisk styresystem i industriel kvalitet, HD-netværkskameradrift som f.eks. zoom, fokus, video switch og pan vippe rotation er stabil og nøjagtig.En integreret aluminiumslegeringsdele har vejrbestandige IP66 .for at sikre sin store optræden udendørs.
Application Scenario: Application Scenario: Applicable in store scenarier, såsom: intelligent by, højspot watching, mobil&trafik, jernbane&motorvej, fængsel, havne, søfart, anlæg, oliefelter, elektricitet, offentlig sikkerhed og brandbekæmpelse, forebyggelse af skovbrande, landskaber osv.
Model | BIT-RC2132W | |
Detection Range | Day:2km/Night:1km | |
Consumption | 10W, 808nm Military NIR | |
Laser Angle | 1°～20° | |
Angle & Distance Matching Technology | 1. DSS digital stepper illumination angle control, advanced laser angle and distance matching technology, min 0.1° follow-up zooming | |
2. GHT-II super homogenizing HD illumination technology | ||
3. 0.01°SLM optical axis aiming and lock | ||
Camera | 1/2.8'' CMOS | |
0.005lux high sensitive color to B/W | ||
2MP, 1920*1080, Automatic ICR switch | ||
H.264/MPEG4/MIPEG video format, support dual video streams | ||
Video Bitrate 32Kbps~16Mbps, 60Hz30 frame/s | ||
Support SD card storage | ||
Photo Cell Control | Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night | |
Lens | 8-320mm focal length | |
F2.0-360 | ||
FOV: (H)41°～1.1° | ||
MOD:1.5M | ||
HD infrared correction, the same focus at day and night | ||
Motorized /manual zoom, DC 8~12V, auto IRIS, DC5V | ||
Fog Penetration | AFR enhanced image processing technology | |
LPR (optional) | Avoid strong light for license plate recognition | |
Housing | 1. Material: Die-cast aluminum alloy housing, sealed and waterproof | |
2. Structure: double window design | ||
3. Surface treatment: PTA three-resistance coating, anti corrosion(optional) | ||
4.Ingress protection: IP66, waterproof, dustproof | ||
5.Connector：Aviation waterproof connector | ||
PT | Pan: 360° continuous rotation，tilt: +40°～-75° | |
Rotation speed： Pan: 0.1°～60°/S, tilt: 0.1°～30°/S | ||
Positioning accuracy: 0.1° | ||
Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | ||
Support coordinate query/feedback and absolute control | ||
Interface | 1*RJ45，1*AC/DC 24V | |
Optional: Reserved RC422/485 and BNC, connect with radar, GIS or others | ||
Military aviation water-proof connector | ||
Protocol | 1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and more 2. Support Onvif 2.4 2. P/T Control Protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional) | |
Power supply | AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option) | |
Working Environment | 1. Working temperature: -25℃～+55℃ (-40℃ optional) 2. Storage temperature:-35℃～+65℃ 3. Working Humidity:<90% 4..Anti-Shake 5.Anti-shock 6.IP66 protection | |
Weight | ≤30kg | |
Maksimal detektionsafstand for et langringet nattesyn PTZ- kamera BIT-RC2132W er 2km om dagen og 1km om natten i god vejr.Videoen kan påvirkes af regn, tåge eller snevejr.
En militær standard, 10W, 808nm NIR-laserlysator anvendes til sin natbelysning.
Avanceret laservinkel og kamerazoom/visningsdistance matching teknologi udviklet af BIT-CCTV anvendes på grundlag af DSS digital stepper laserlysbilled-styring for at sikre homogen belysning af kamerabillede.
BIT-RC2132W night vision langdistance PTZ camera er IP66 vurderet for alle vejrforhold.
