Visible og termisk billeddannelse med dobbelt syn PTZ kamera

Karakteristika af BIT-TVC40516W-1930-IP HD Visible and Thermal Imaging Dual Vision PTZ Kamera


  • Vox umuoled thermocamera, 384*288/640*512 resolution

  • 3165374;155mm linse til termisk kamera, motoriseret zoom og auto focus

  • Detection range 10.2km, anerkendelsesområde 2.4km, 12347880P synlig kamera4.3§129mm linse

  • 360 kontinuerlig pan rotation, hældningsvinkel:-75176;§ 40 176;

  • Pan: 0.1176;/ s §s §vip 0


Kontakt os

Overview

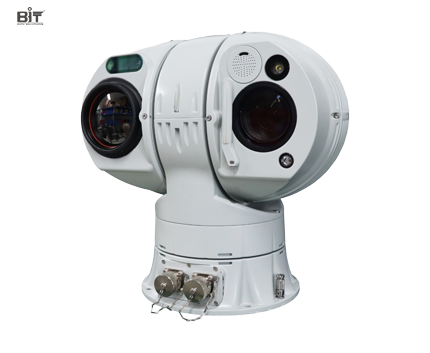

BIT-TVC406-1930-IP, et langdistance visual and thermal imaging dobbelt vision PTZ kamera, er et PTZ kamera, der er specielt designet til speciel anvendelse i industrien, i stand til at understøtte synligt kamera med 1080P HD resolution med 4.3§129mm linse og 384*288/640*512 ukooleret varmekamera med 31mm§155mm linse.Kombineret med 360-gradens kontinuerlige rotation med høj præcisionsindflyvningsenhed er dette dobbelte sensor PTZ infrarød kamera i stand til at give 24-timers real-time sikkerhedssituation opmærksomhed med detektionsområde op til 8.6km.


Med indbygget elektronisk styresystem af industriel kvalitet kan vigtige funktioner som zoom, fokus, videokontakt og P/T-bevægelser betjenes let.IP66-beskyttelse sikrer, at den fungerer godt 24/7 under alle vejrforhold.


Application Scenario: Application Scenario: Applicable in store scenarier, såsom: intelligent by, højspot watching, mobil&trafik, jernbane&motorvej, fængsel, havne, søfart, anlæg, oliefelter, elektricitet, offentlig sikkerhed og brandbekæmpelse, forebyggelse af skovbrande, landskaber osv.


Tekniske specifikationer


Model

BIT-TVC4516W-1930-IP

Detection

Vehicle: 10,200m/Human: 2,700m

Identification

Vehicle: 2,400m/Human: 1,300m

Thermal sensor

VOx uncooled detector, 384*288 (640*512 optional)

7.5um-14um spectral response, 50mk NETD

Thermal lens

31mm～155mm, 5X zoom

Motorized zoom and auto focus

Fov（H）

11.2°～2.2°

Image processing

2X digital zoom; AGC; 10 pseudo color; SDE image enhancement

Visible sensor

1/2.8'' CMOS

0.01lux color to B/W

2.1MP ,1920X1080

Automatic ICR switch

H.265/H.264/MPEG4/MIPEG

32Kbps~16Mbps, 60Hz, 30 FPS

Visible lens

4.3～129mm, 30X zoom

Motorized zoom

DC8-12V

For penetration

Not support

Housing

1. Material: High strength aluminum alloy housing, waterproof seal, avoid the growth of mold and moisture generated

2.  Structure:Integrated double-window design

3.  Surface coating: PTA three-resistance coating, corrosion resistance

4.  Built-in thermostat, design of thermal equilibrium

5.  Interface: Aviation waterproof connector

Pan Tilt

Pan: 360° continuous rotation，tilt: -75°～40°

Rotation speed: Pan: 0.1°～60°/S, Tilt: 0.1°～30°/S

Positioning accuracy: 0.1°

Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan

Support coordinate query/feedback, angle real-time display and absolute control, zero position correction

Interface

1*RJ45. 10M/100M adaptive Ethernet port (include thermal+HD visible+RS485)

1* AC24V/DC24V

Video format

H.265/H.264, Dual video output

Protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP etc.

Support ONVIF2.4

Pelco-P、Pelco-D, Baudrate 2400、4800、9600、19200 optional

Power supply

AC24V/DC24V±10%, 50Hz, 150W, Standard AC220V->AC24V power supply

Environment

1. Operating temperature:-40℃～+65℃

2. Storage temperature:-40℃～+65℃

3. Humidity:<90%

4. Anti-lighting: built-in auto Fuse-protected device, power 4000V, signal 2000V

5. Ingress protection:IP66

Weight

≤25kg
